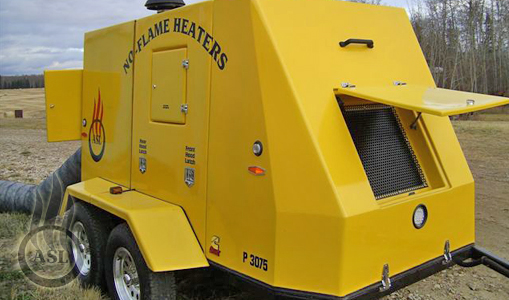

P3075 HEAT GENERATING UNIT
The ASL heat generating unit is a highly effecient, extremely safe alternative for the production of large volumes of heat. The double rotating magnetic disks have no touching surfaces. The technology uses a direct coupled diesel engine to turn the disks, using 12 VDC power to activate the eletro magnets, producing a NO-FLAME, NO-SPARK, clean dry heat. The P3075 will deliever 1 million + BTU's of heat at 80°C and 7200 + CFM air flow. In order to maximize the efficiency of the unit, air is passed over the diesel engine to collect all heat produced, (direct or ducted) to the target. Heat output is controlled by simple settings of four switches, air flow is controlled by throttle switch settings, allowing a selection of 50K to 1 1/4 million + BTU and 60 to 7200 + CFM. Due to few moving parts, the potential for failure is minimal. (Air flow and temperatures are approximate)
SPECIFICATIONS
MODEL: JD PowerTech 4045HF285
also avaliable in Cummings QSB 4.5
DISPLACEMENT: 4.5L (276 cu.in.)
RATED OUTPUT: 140 HP (104 KW) @ 2400 RPM
ENGINE SHUTDOWNS: Automatic fuel shut-off for: Low Oil Pressure, and High Temperatures.
POSITIVE AIR SHUT-OFF FOR: Explosive gases (Roda Deaco Valve)
BRUSHLESS ALTERNATOR FOR: No-Spark Operation (Denso)
ENGINE EXHAUST: To California Specifications
CAPACITIES: Engine Oil: 13.5L (3 Imp. Gal)
Engine Coolant: 20.5 L (4.5 Imp. Gal)
Fuel: 586 L (129 Imp. Gal.)
(All capacities are approximate)
DISCHARGE TUBE DUCT: 16 in. (40.6 cm) (Discharge Tubes Available)
TRAILER DIMENSIONS:
Total Height: 7 ft. 5 in. (226 cm)
Total Length: 14 ft. 6 in. (442 cm)
Total Width: 7 ft. 4 in. (223.5 cm)
Axels: 2 - 3500 lb. Rubber Torsion
Brakes: All Wheels
Unit Weight: w/Fuel 5,123 lbs. (2324 kg)
wo/Fuel 4,083 lbs. (1853 kg)
LIGHTING: All D.O.T. approved reflectors and LED lights. Battery activated, Brakeaway Safey Kit (with charger), Armorthane Rock Guard on front of Units. All units include polished aluminum wheels. (All measurments and weights are approximate)
